Hard Tire Scissorlifts
HARD TIRE SCISSORLIFTS IN NEW CASTLE, PA
The Conventional Series DC Electric Scissor Lifts offer high capacity and large platform areas, making them suitable for any on-slab application. Featuring variable speed rear wheel hydraulic drive, the Conventional Series offers working heights up to 38’, and 25% gradeability.
SkyJack and Genie slab scissor lifts are the industry solution for increasing worksite productivity. Ideal for maneuvering in tight spaces, they’re excellent for indoor and outdoor construction, maintenance and installation applications with ?rm, level surfaces. Characterized by low noise levels, these lifts provide excellent capacity and large platform workspace.
- Compact dimensions: 75 to 80 cm wide and 1.35 m long.
- Driveable when fully elevated
- Zero inside turning radius
- 30% gradability
- Spring applied hydraulically released brake system
- 25 cm (10 in) no-marking solid rubber tires
- High angle steering provides excellent maneuverability.
- SEasy to service

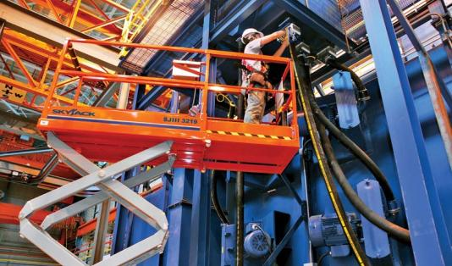

Consistent with Skyjack’s robust and reliable design features, the SJIII 3219 offers an easy to service, low maintenance design in a compact and versatile package. Featuring a 3’ roll out extension deck, a working height of 25’ and 25% gradeability, the SJIII 3219 boasts an industry leading capacity of 550 lbs. Equipped with variable speed front wheel hydraulic drive and 90° steering, it is capable of maneuvering in the smallest spaces.
The SJIII 3219 features durable steel swing-out component trays, providing unrestricted access for easy maintenance and service. Utilizing Skyjack’s standard color coded and numbered wiring system with analog based controls ensures the SJIII 3219 will maintain its industry leading life cycle value.
The SJIII 3219 features durable steel swing-out component trays, providing unrestricted access for easy maintenance and service. Utilizing Skyjack’s standard color coded and numbered wiring system with analog based controls ensures the SJIII 3219 will maintain its industry leading life cycle value.
Offering a large platform area and a high capacity, the SJIII 4626 comes equipped with variable speed rear wheel hydraulic drive. Utilizing Skyjack’s standard color coded and numbered wiring system with analog based controls ensures the SJIII 4626 will maintain its industry leading life cycle value.
Overview Specifications
Work Height: 32’ (9.8 m)
Raised Platform Height: 26’ (7.9 m)
Raised Platform Height: 26’ (7.9 m)
Lowered Platform Height: 45” (1.1 m)
Overall Width: 46” (1.2 m)
Overall Width: 46” (1.2 m)
Overall Length: 91” (2.3 m)
Stowed Height (Rails Up): 84.5” (2.1 m)
Stowed Height (Rails Down): 70.5” (1.8 m)
Platform Width (Inside Dimension): 42” (1.1 m)
Platform Length (Inside Dimension): 84” (2.1 m)
Extension Deck (Roll Out): 4’ (1.2 m)
Wheelbase: 69” (1.8 m)
Stowed Height (Rails Up): 84.5” (2.1 m)
Stowed Height (Rails Down): 70.5” (1.8 m)
Platform Width (Inside Dimension): 42” (1.1 m)
Platform Length (Inside Dimension): 84” (2.1 m)
Extension Deck (Roll Out): 4’ (1.2 m)
Wheelbase: 69” (1.8 m)
Ground Clearance (Stowed): 3.5” (8.9 cm)
Ground Clearance (raised): 0.75” (1.9 cm)
Weight: 4,700 lbs (2,132 kg)
Gradeability: 30%
Turning Radius (Inside): 47.5” (1.2 m)
Turning Radius - Outside: 93.5” (2.4 m)
Ground Clearance (raised): 0.75” (1.9 cm)
Weight: 4,700 lbs (2,132 kg)
Gradeability: 30%
Turning Radius (Inside): 47.5” (1.2 m)
Turning Radius - Outside: 93.5” (2.4 m)
Lift Time (With Rated Load): 54 sec
Drive Speed (Stowed): 2 mph (3.2 km/h)
Drive Speed (Raised): 0.6 mph (1 km/h)
Maximum Drive Height: Full Height
Capacity (Overall): 1,000 lbs (454 kg)
Maximum # of Persons: 3
Drive Speed (Stowed): 2 mph (3.2 km/h)
Drive Speed (Raised): 0.6 mph (1 km/h)
Maximum Drive Height: Full Height
Capacity (Overall): 1,000 lbs (454 kg)
Maximum # of Persons: 3
Nothing beats a Genie Scissor for performance, safety, serviceability and value.
- The solid steel deck platform has a slip-resistant surface.
- Heavy duty tubular steel guardrails maximize durability. Telescopic end rail can be raised to accommodate large loads.
- Lubrication-free, service-free pivot points.
- Built-in lanyard attachment points.
- The ergonomic Joystick Controller operates from the platform or the ground.
- Low noise level allows operation in quiet work environments.
- High angle steering provides excellent maneuverability.
- Swing-out battery box and power module allow easy access to componentry. Variable speed motor extends battery and motor life by using only the energy needed to do the required work. On-board troubleshooting diagnostics notify the operators of possible fault conditions.
Genie Standard Features

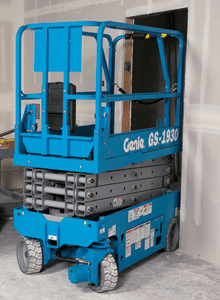

- GS-1530 has 21 ft (6.5 m) working height and GS-1930 has 25 ft (7.8 m) working height
- 39 in (1 m) roll-out platform extension
- Compact 30 in (76 cm) width
- 600 lb (272 kg) lift capacity for the GS-1530 and 500 lb (227 kg) lift capacity for the GS-1930
- Compact design
- Automatic 25 amp battery charger
- Proportional controls for lift and drive functions
- Multiple disc brakes provide smooth deceleration
- Drive speed interlock limits speed while elevated
- Emergency stop at both platform and ground controls
- Manual platform lowering valve
- Manual brake release
- Pothole guards
- Non-marking tires
- AC wiring to platform
- Tilt level sensor with an audible alarm
- Beeper horn
- Hour meter
Genie Options and Accessories
- Motion alarm
- Air line to platform
- Platform swing gate
- Dual flashing beacon
- Maintenance-free battery
Standards Compliance
- ANSI/SIA A92.6
- CSA CAN3-B354.2-M82
- CE compliance option
- AS 1418.10
Its narrow width allows access in hard-to-reach spots. Fits through a standard doorway.
- 90 degree steering provides zero turning radius and excellent maneuverability.
- Single door access 32 in (81.3 cm)
- On-board troubleshooting diagnostics notify the operators of fault conditions.
- Variable speed motor extends battery and motor life by using only the energy needed to do the required work.
- Weather resistant, impact resistant, molded Joystick Controller box operates from the platform or the ground.
- The solid steel deck platform has a slip-resistant surface.
- Heavy duty square steel guardrails fold down quickly without tools for single door access. Low noise level allows operation in quiet work environments.
- Swing-out battery box and power module allow easy access to component.
- Lubrication-free, service-free pivot points.
Genie Scissor Lift Standard Features

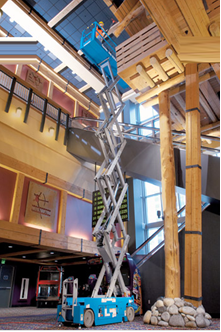

- Genie Model GS-2632 has 32 ft (9.92 m) working height
- 39 in (1 m) roll-out platform extension
- Compact 32 in (81.3 cm) width
- 500 lb (227 kg) lift capacity
- Proportional controls for lift and drive functions
- Automatic 25 amp battery charger
- Manual platform lowering valve
- Emergency stop switches at both platform and ground controls
- Drive speed interlock limits speed while elevated
- Multiple disc brakes provide smooth deceleration
- Manual brake release
- Pothole guards
- Non-marking tires
- AC wiring to platform
- Tilt sensor with an audible alarm
- Beeper horn
- Hour meter
Genie Scissor Lift Standard Features
- Motion alarm
- Power inverter
- Platform swing gate
- Air line to platform
- Dual flashing beacons
- Automotive horn
- EE rating
- Maintenance-free batteries
Genie Scissor Lift Standard Features
- ANSI/SIA A92.6
- CSA CAN3-B354.2-M82
- CE compliance option
- AS 1418.10
Genie Lifts Satisfies your heavy lifting requirements with ease and efficiency.
- The solid steel deck platform has a slip-resistant surface.
- Heavy duty guardrails fold down quickly without tools for increased accessibility.
- Lubrication-free, service-free pivot points.
- Built-in lanyard attachment points are provided.
- The ergonomic Joystick Controller operates from the platform or the ground.
- Low noise level allows operation in quiet work environments.
- High angle steering provides excellent maneuverability.
- Swing-out battery box and power module allow easy access to components.
- Variable speed motor extends battery and motor life by using only the energy needed to do the required work.
Genie Standard Features
- 39 in (1 m) roll-out platform extension
- Proportional controls for lift and drive functions
- AC wiring to platform
- Multiple disc brakes provide smooth deceleration
- Manual platform lowering valve
- Tilt sensor with an audible alarm
- Pothole guards
- Emergency stop switches at both platform and ground controls
- Automatic 25 amp battery charger
- Manual brake release
- Non-marking tires
- Hour meter
Genie Options and Accessories
- Automotive horn
- Motion alarm
- Platform swing gate
- Air line to platform
- Dual flashing beacons
- Power inverter
- Maintenance-free battery
Standards Compliance
- ANSI/SIA A92.6
- CSA CAN3-B354.2-M82
- CE compliance option
- AS 1418.10
- Quiet, zero-emission electric operation ideal for sound-sensitive environments
- Front-wheel drive and zero inside turning radius for maneuverability in tight spaces
- Automatic leveling hydraulic outrigger system levels machine on slopes up to 5?
- Link stack is centered at full elevation and platform extension for machine rigidity
- Forward-angled Hall-effect joystick for comfortable, accurate control
- LED window on platform controls with battery level indicator, on-board diagnostics and more
- Electronic control system allows for variable-speed DC motor for greater battery efficiency
- Compact dimensions and folding guardrails — easily passes through standard single or double doors
- 3 ft (.91 m) extension deck provides maximum platform workspace for workers and tools
- Heavy-duty steel swing-out service trays for easy service access
- Laser locator option helps operator position the unit before outriggers are deployed
